Hex Shank HSS Twist Drill Bit Titanium Coated

Basic Info.

Model NO.	TD-011
Trademark	FANXI
Origin	P. R. China
HS Code	8207509000
Production Capacity	100, 000PCS/Month

Product Description

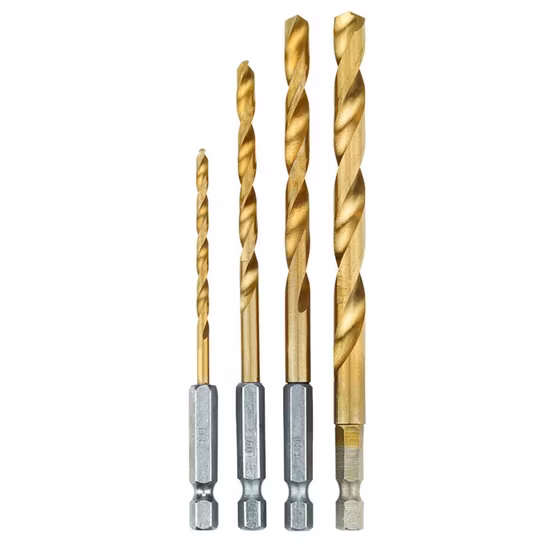

1/4" Hex Shank HSS Twist Drill Bit Titanium Coated
Hardened high speed steel body provides additional safeguard.
HSS cobalt high speed steel are available on request.
Right hand cutting direction; Standard two flute design.
General Purpose Hex Shank Drills are designed for use in cordless screwdrivers and drills. For general purpose drilling. Hex shank has a recessed snap-in ring to lock drills into drill chuck.
Heavy Duty Hex Shank Drills are designed for use in cordless screwdrivers and for drilling harder materials. Hex shank has a recessed snap-in ring to lock drills into drill chuck.
Black oxide finish or Bright finish are available on request.
135 degree split point for quick start and no walk application.
118 degree point angle design for general purpose are available on request.

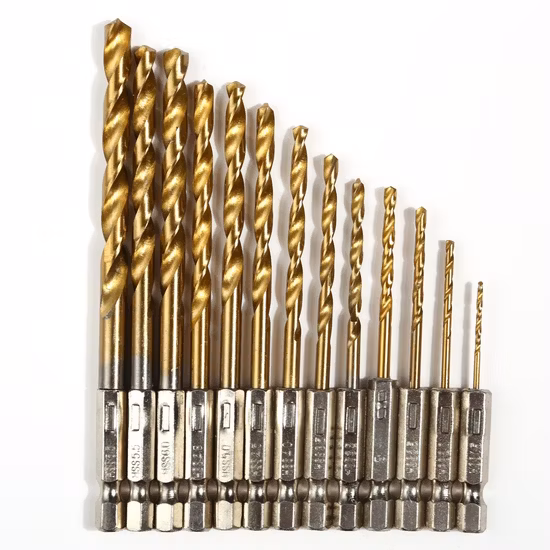

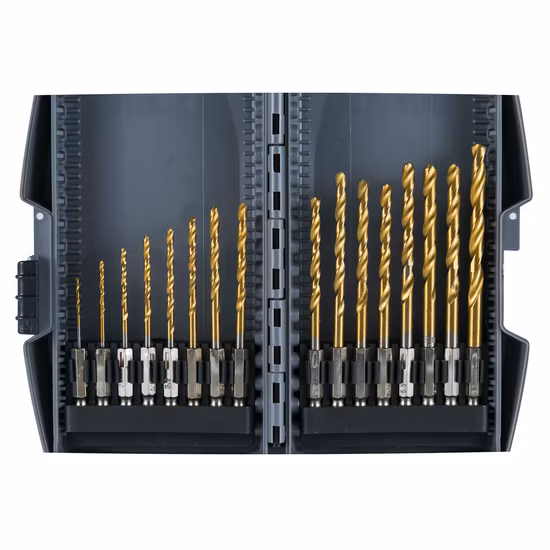

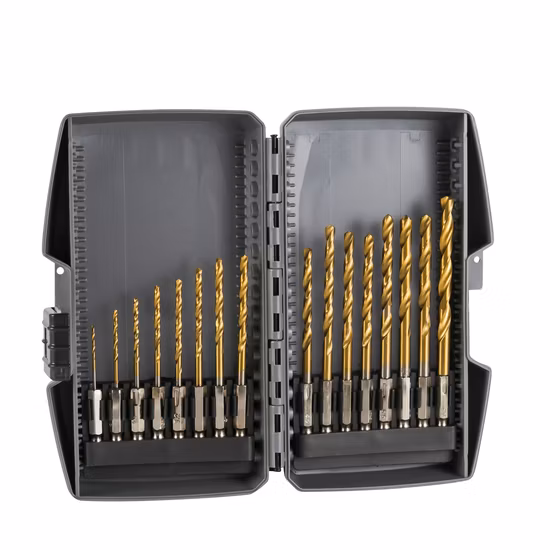

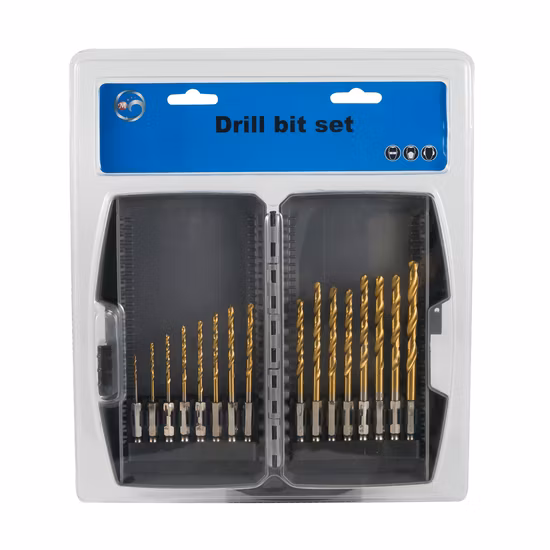

Hex Shank Drill Bits Set are available on request.
Metric Size are available ( DIN Standard ):
1.0mm ~ 13.0mm by 0.1mm
Set are available:
1.5 ~ 6.5mm x 13 PCS set
Inch Size are available ( ANSI B94.11M-1993 Standard ):
Fractional Size: 1/16" ~ 1/2"
Letter Size: A ~ Z
Wire Gage Size: 1# ~ 60#
Set are available:
1/16" ~ 1/4" x 7 PCS set by 32NDS
1/16" ~ 1/4" x 13 PCS set by 16NDS

Diameter	Overall Length	Flute Length	Diameter	Overall Length	Flute Length
0.2	19	2.5	11.0	142	94
0.3	19	3	11.5	142	94
0.4	20	5	12.0	151	101
0.5	22	6	12.5	151	101
0.6	24	7	13.0	151	101
0.7	28	9	13.5	160	108
0.8	30	10	14.0	160	108
0.9	32	11	14.5	169	114
1.0	34	12	15.0	169	114
1.5	40	18	15.5	178	120
2.0	49	24	16.0	178	120
2.5	57	30	16.5	184	125
3.0	61	33	17.0	184	125
3.5	70	39	17.5	191	130
4.0	75	45	18.0	191	130
4.5	80	47	18.5	198	135
5.0	86	52	19.0	198	135
5.5	93	57	19.5	205	140
6.0	93	57	20.0	205	140
6.5	101	63	21.0	205	145
7.0	109	69	22.0	210	150
7.5	109	69	23.0	215	155
8.0	117	75	24.0	220	160
8.5	117	75	25.0	220	160
9.1	125	81	26.0	235	170
9.5	125	81	27.0	235	170
10.0	133	87	28.0	235	170
10.5	133	87	29.0	240	175
