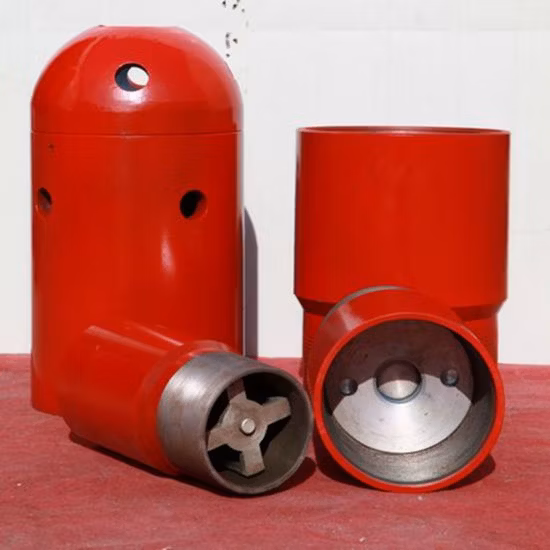

API Cementing Tools Oilfield Drilling Equipment Casing Float Collar Float Shoe

Basic Info.

Model NO.	GPE-S
Power Source	None
Operation Pressure	None
Applicable Medium	Crude Oil
Structure	None
Material	Stainless Steel
Specification	float collar float shoe
Trademark	GOLDENMAN
Origin	China
HS Code	8431
Production Capacity	150000

Packaging & Delivery

Package Size 51.00cm * 25.00cm * 25.00cm Package Gross Weight 21.000kg

Product Description

API Oilfield Drilling Cementing Tool Casing Float Collar and Float Shoe

1. Float shoe is attached on the casing bottom and provide buoyancy to the casing string while it's lowered, reducing the load on the drilling rig. The round nose guides the casing away from ledges and obstructions in the well bores as the casing is lowered. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it is displaced.Features:1. Special designed body destruction retains higher pressure.2. Qualified concreting procedure.3. The valve is capable of withstanding long periods of circulation.4. Either PDC or rock bit drillable.
Welcome to consult, we will provide the most comprehensive technical support!

Size (in)		Bore OD (in)	Bore ID (in)	Min. Bore	Thread Type	Ib (in2 )
				Parameter (in)
Float Shoe	5 1/ 2"	< >6"	4 3/ 4"	2"	5 1/ 2" LCSG	4351
	< >7"	7 5/ 8"	6 1/ 4"	2 3/ 8"	< >7" LCSG	3626
	9 5/ 8"	10 5/ 8"	8 5/ 8"	2 3/ 8"	9 5/ 8" LCSG	3626
	13 3/ 8"	14 3/ 8"	12 3/ 8"	2 3/ 8"	13 3/ 8" LCSG	3626

Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it's lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it's displaced. It's a receptacle to cement plug.Features:1. All inner parts are made of easily drillable aluminum alloy.2. The device can be connected directly to the casing of the same type.3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.4. Valve seat and valve disk can effectively prevent grout from flowing back.5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.
